Mesin Modular YS24 Compact Kecepatan Super Tinggi, Peralatan Perakitan Smt Pcb KKE-000

Mesin Modular YS24 Compact Super-Berkecepatan Tinggi KKE-000 Smt Pcb Majelis

Mesin Modular YS24 Compact Super-Berkecepatan Tinggi KKE-000 Smt Pcb Majelis

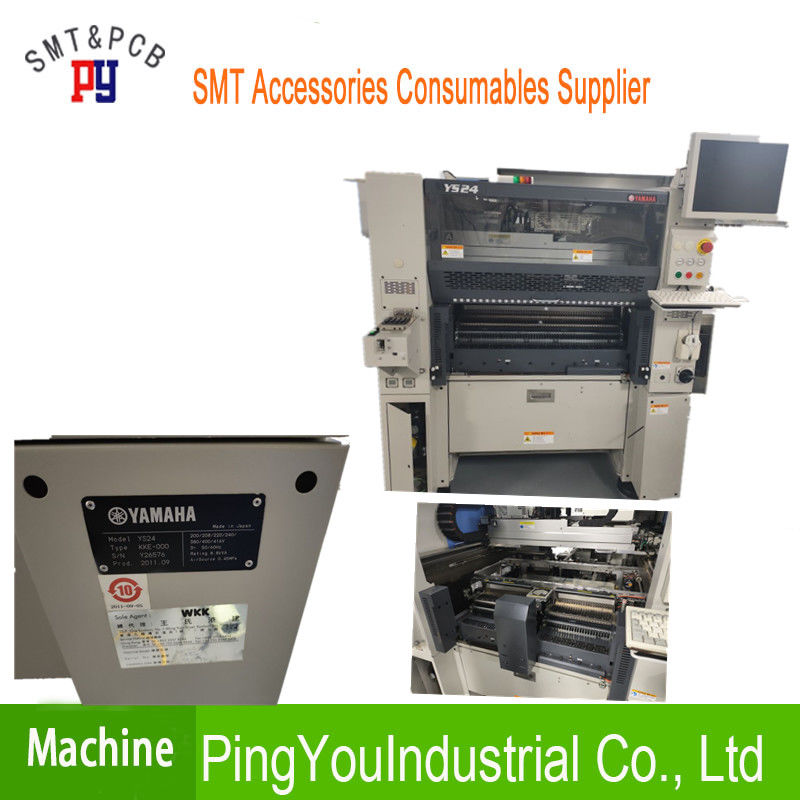

Yamaha YS24 Series Mounter dibagi menjadi Yamaha YS24 dan

Model Yamaha YS24X,

Yamaha YS24 / YS24X mendukung substrat ultra besar L700 × W460mm

Meja penempatan ganda unik Yamaha, sistem rel ganda.

Produksi YS24 per unit luas 340.000 CPH / meter persegi.

72,000CPH (0,05 dtk / CHIP)

Kemampuan pemasangan yang sangat baik

"Dual Stage Conveyor" yang baru dikembangkan 34kCPH / ㎡

Area-produktivitas, kelas atas di dunia

L700 x W460mm PCB super besar yang berlaku

Sistem YAMAHA Dual Lane berlaku

120 Kapasitas pengumpan maks

0402 hingga 32 x 32mm

Komponen berlaku

72,000CPH (0,05 dtk / CHIP)

Kemampuan pemasangan yang sangat baik

"Dual Stage Conveyor" yang baru dikembangkan 34kCPH / ㎡

Area-produktivitas, kelas atas di dunia

L700 x W460mm PCB super besar yang berlaku

Sistem YAMAHA Dual Lane berlaku

120 Kapasitas pengumpan maks

0402 hingga 32 x 32mm

Komponen berlaku

Model YAMAHA YS24

PCB L50xW50mm –untuk L700xW460mm yang berlaku

Akurasi pemasangan +/- 0,05mm (+ 3), +/- 0,03mm (3)

Kecepatan 72.000CPH (0,05 dtk / CHIP: Kondisi optimal yang ditetapkan oleh Yamaha Motor)

Komponen yang berlaku

0402 hingga 32x32mm MAX (Tinggi 6,5 mm atau kurang)

Jenis Komponen

120 jenis (Konversi lebar pita Max. 8/8)

Sumber Daya listrik

Tiga fase AC 200/208/220/240/380/400/416 V +/- 10%

Sumber pasokan udara

0.45MPa

Dimensi eksternal

L1,254x W1,687x H1,445mm (Tidak termasuk tonjolan)

Bobot

Approx. Perkiraan. 1,700kg 1,700kg
