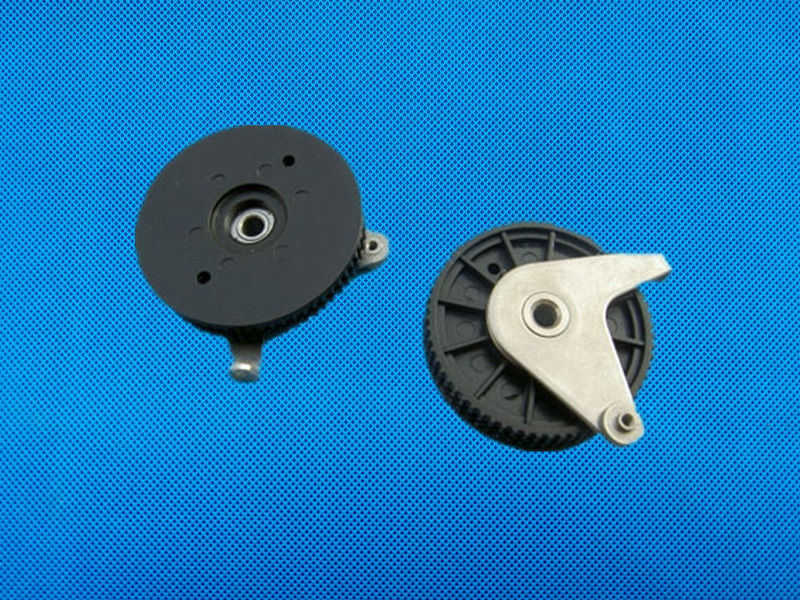

YAMAHA SMT Feeder Parts KW1-M1191-00X Drive Roller Unit 9498 396 03218

  • YAMAHA SMT Feeder Parts KW1-M1191-00X Drive Roller Unit 9498 396 03218
  • YAMAHA SMT Feeder Parts KW1-M1191-00X Drive Roller Unit 9498 396 03218
Tempat asal Jepang
Nama merek YAMAHA
Nomor model UNIT KW1-M1191-00X DRIVE ROLLER
Kuantitas min Order 1pcs
Harga Negotiation
Kemasan rincian Baru
Waktu pengiriman 1-2days
Menyediakan kemampuan 200pcs/month

Hubungi saya untuk sampel dan kupon gratis.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nomor bagian 9498 396 03218 Nama bagian Perlengkapan Pengumpan
Bahan Plastik Jenis Pengumpan Gunakan untuk pengumpan tipe YAMAHA CL
Warna Hitam Kondisi Salin baru
Cahaya Tinggi

suku cadang juki

,

pengumpan kalibrasi jig
Tinggalkan pesan
Deskripsi Produk
UNIT KW1-M1191-00X DRIVE ROLLER

Top foil assy wheel Gear kanan, 8mm
Bagian no .: 9965 000 10263
Nomor Bagian Alternatif: 9498 396 03218
YAMAHA FEEDER 8 * 4 8 * 2 DAFTAR BAGIAN
KW1-M1100-000FEEDER CL84B
KW1-M1400-00XFEEDER CL8X2
KW1-M1500-030FEEDER CL823
SPROCKET K87-M1320-10X CL8X2
Pin Knock KW1-M1113-0008mm (Depan / Belakang)
SCREW KW1-M111T-00X
Bagian NoPart Name
KW1-M111T-00XSCREW, KEPALA TIPIS
K87-M111P-00XSCREW, KEPALA DATAR +
K87-M11BF-00XSCREW, KEPALA DATAR + IB
K87-M111S-00XSCREW, KEPALA DATAR +
KW1-M112A-00X RACKING LEVER ASSY
KW1-M1131-102CL8mm UNIT CLAMP LEVER
PANDUAN TAPE KW1-M1140-00X CL8X4
KW1-M1140-010CL8x4, Unit Panduan Pita BARU
KW1-M114A-00X8mm HAND LEVER ASSY
Sampul KW1-M114L-000
KW1-M1150-000 Handle Lever Assy
KW1-M115L-000CL8mm HOLD ARM
KW1-M116D-000 Tension Lever Assy
KW1-M116K-00X LEVER ASSY (CL8mm)
KW1-M1177-00X8mm ARM UTAMA
KW1-M1185-00XCL8mm MULTI CYLINDER
UNIT KW1-M1191-001 DRIVE ROLLER UNIT
KW1-M1192-00XCL8mm INDENTASI LVR ASSY
KW1-M119F-00XCL8mm DRIVE ROLLER ASSY
KW1-M119L-00X IDLE ROLLER ASSY
KW1-M11A1-011 Pelat Bawah Panduan
KW1-M11D0-200 FEEDER REEL HOLDER ASSY
PANDUAN TAPE KW1-M1340-00X CL8X2
KW1-M1340-010CL8x2, Unit Panduan Pita BARU
SPRING & SCREW DAUN KW1-M134T-00X
KW1-M1540-00XCL823 Panduan Tape Assy
KW1-M119K-00XCL8mm SPRING
Bagian NoRemarks
K87-M112D-10X
KW1-M111E-00X
KW1-M111A-00X
KW1-M119K-00X
KW1-M119P-00X
YAMAHA FEEDER12 16mm DAFTAR BAGIAN
KW1-M2200-300FEEDER CL12mm
KW1-M3200-10XFEEDER CL16mm
Pin Ketukan K87-M1112-10012 / 16mm
K87-M212L-10X Sprocket Axis Assy (CL12 / 16)
KW1-M125L-100 HOLD ARM (CL12 / 16mm)
KW1-M222A-00X Racking Lever Assy (CL12 & 16)
KW1-M2231-001 Clamp Lever Unit (CL12 / 16mm
Tape Guide Plate UnitCL12 / CL16 Tape Guide Plate
Satuan
KW1-M224A-00X HAND LEVER ASSY (CL12mm)
KW1-M224D-00X SUB ARM (CL12mm)
KW1-M2250-000 Handle Lever Assy (CL12mm
KW1-M226D-00X TENSION LEVER ASSY (CL12 / 16)
KW1-M2277-00X MAIN ARM (CL12mm)
KW1-M2285-00XCL12 / 16mm) MULTI CYLINDER
UNIT KW1-M2291-000 DRIVE ROLLER (CL12 / 16)
KW1-M2292-00X INDENTASI LVR ASSY (CL12mm
KW1-M229F-000 DRIVE ROLLER ASSY (CL12mm
KW1-M229L-000 IDLE ROLLER ASSY (CL12mm)
KW1-M324A-000 HAND LEVER ASSY
KW1-M329F-00XCL16mm) DRIVE ROLLER ASSY
KW1-M329L-000 IDLE ROLLER ASSY (CL16mm)
YAMAHA FEEDER 24-72mm DAFTAR BAGIAN
KW1-M4500-015FEEDER CL24mm
KW1-M5500-010FEEDER CL32mm
KW1-M6500-000FEEDER CL44mm
KW1-M7500-000FEEDER CL56mm
KW1-M8500-000FEEDER CL72mm
K87-M2131-001 Clamp Lever Unit (CL24 ~ 72mm)
K87-M2381-000 AIR CYLINDER (CL24 ~ 72mm)
KW1-M451D-001 SPRING (CL24 ~ 72mm)
Bagian Tidak (Baru) Nama Bagian
KW1-M451D-001SPRING
KW1-M459M-000SPRING
KW1-M456C-000SPRING
KW1-M451A-001SPRING
K87-M559A-000 DRIVE GEAR ASSY
K87-M559K-000 GEAR INDEKS
KW1-M4512-000 Knock Pin (CL24 ~ 72mm)
KW1-M451G-000 LEVER ASSY
KW1-M451H-000 BACK STOPPER (CL24 ~ 72mm)
KW1-M4520-000 SPROCKET ASSY (CL24 ~ 72mm)
KW1-M452A-000 Racking Lever Assy (CL24 ~ 72mm)
KW1-M4540-000 Tape Guide Assy (CL24mm-72mm)
Bagian NoModel
KW1-M4540-000CL24mm
KW1-M5540-000CL32mm
KW1-M6540-000CL44mm
KW1-M7540-000CL56mm
KW1-M4540-010 Unit pemandu pita (CL24 ~ 56mm)
Bagian NoModel
KW1-M4540-010CL24mm
KW1-M5540-010CL32mm
KW1-M6540-010CL44mm
KW1-M7540-010CL56mm
KW1-M454A-020 LOCK LEVER ASSY (CL24 ~ 72mm)
KW1-M456N-000 Reel Cover Assy (CL24 ~ 72mm)
KW1-M4577-000 MAIN ARM (CL24 ~ 72mm)
KW1-M458A-001 SET PLATE ASSY (CL24 ~ 72mm
KW1-M459L-000 SUB ARM (CL24 ~ 72mm)
KW1-M459N-000 ROOL UP Assy (CL24 ~ 72mm)
KW1-M459U-000 Reel Plate
ModelPart No
CL24mmKW1-M459U-000
CL32mmKW1-M559U-000
CL44mmKW1-M659U-000
CL56mmKW1-M759U-000
CLY825A15KW1-M12D0-00XREEL HOLDER ASSY
CLY825A15KW1-M12D1-00XREEL PLATE ASSY
CLY825A15K87-M11D7-20XCIRCLIP C
CLY825A15KW1-M12DA-00XTENSION LEVER ASSY
CLY825A15KW1-M12DL-00XSPRING
CLY825A15KW1-M111S-00XSCREW, KEPALA DATAR +
CLY825A15K87-M111S-00XSCREW, KEPALA DATAR +
CLY823A7K87-M111H-20XBACK STOPPER
CLY823A7K87-M111B-00XBACK STOPPER AXIS
CLY823A7KW1-M111A-00XSPRING
CLY823A7K87-M111G-10XPUSH PIN
CLY823A7K87-M111C-00XPLANE WASHER
CLY823A7K87-M111P-00XSCREW, KEPALA DATAR +
CLY823A7K87-M111D-00XPUSH PIN
CLY823A7K87-M112L-10XSPROCKET AXIS ASSY
CLY823A7KW1-M112A-00XRACKING LEVER ASSY
CLY823A7K87-M112D-10XCOIL SPRING
CLY823A7KW1-M111E-00XSPRIGN
PIN CLY823A7K87-M111F-10XSTOPPER
CLY823A7K87-M1181-00XROD CONNECT
CLY823A7K87-M1184-00XCONNECT PIN
CLY823A7KW1-M1185-00XMULTI CYLINDER
CLY823A7KW1-M111L-00XBARB CONNECTOR
CLY823A7K87-M111M-00XGASKET
CLY823A7KW1-M11B1-00XAIR HOSA
CLY823A7K87-M11B9-00XCIRCLIP E
CLY823A7KW1-M11BL-00XBOLT, KEPALA SOKET HEX
CLY823A7KW1-M11BM-00XSPRING LOCK WAHSER
CLY823A7KW1-M114A-00XHAND LEVER ASSY
CLY823A7KW1-M116K-00XLEVER AXIS
CLY823A7KW1-M1177-00XMAIN ARM
CLY823A7K87-M111C-00XPLANE WASHER
CLY823A7K87-M11BF-00XSCREW, KEPALA DATAR + IB
CLY823A7KW1-M114N-00XGUIDE AXIS
CLY823A7K87-M111R-00XSCREW, SET
CLY823A7K87-M111T-00XSCREW, SET
CLY823A7K87-M1320-10XSPROCKET ASSY
PANDUAN CLY823A7KW1-M1540-00XTAPE ASSY
CLY823A7K87-M1546-00XADJUST PLATE
CLY823A7K87-M1547-00XSCREW, TRUSS HEAD
CLY823A7K87-M1548-00XPLANE WASHER
CLY823A7KW1-M134T-00XLEAF SPRING
CLY823A7K87-M53BS-00XSCREW, PAN HEAD +
CLY823A7KW1-M1110-00XBODY ASSY
CLY823A7KW1-M1112-00XKNOCK PIN
CLY823A7KW1-M1113-00XKNOCK PIN
RIVET CLY823A7K87-M1115-00XCIRCULAR
CLY823A7KW1-M1150-00XHANDLELEVER ASSY
CLY823A7KW1-M116F-00XLEVER AXISPIN
CLY823A7KW1-M115D-00XGUIDE PIN ASSY
CLY823A7KW1-M116D-00XTENSION LEVER ASSY
CLY823A7KW1-M116F-00XLEVER PIN AXIS
RIVET CLY823A7K87-M1115-00XCICULAR
CLY823A7KW1-M1131-00XCLAMP UNIT
CLY823A7KW1-M1132-00XCLAMP LEVER ASSY
CLY823A7K87-M113A-00XCLANK ASSY
CLY823A7K87-M113D-00XARM
CLY823A7K87-M113E-00XHINGE PIN2
CLY823A7K87-M11D7-00XCIRCLIP E
CLY823A7K87-M113L-10XCLAMP LEVER AXIS
PIN CLY823A7K87-M113M-00XAXIS
CLY823A7K87-M113H-00XPUSH PIN
CLY823A7K87-M111V-00XSCREW, SET
